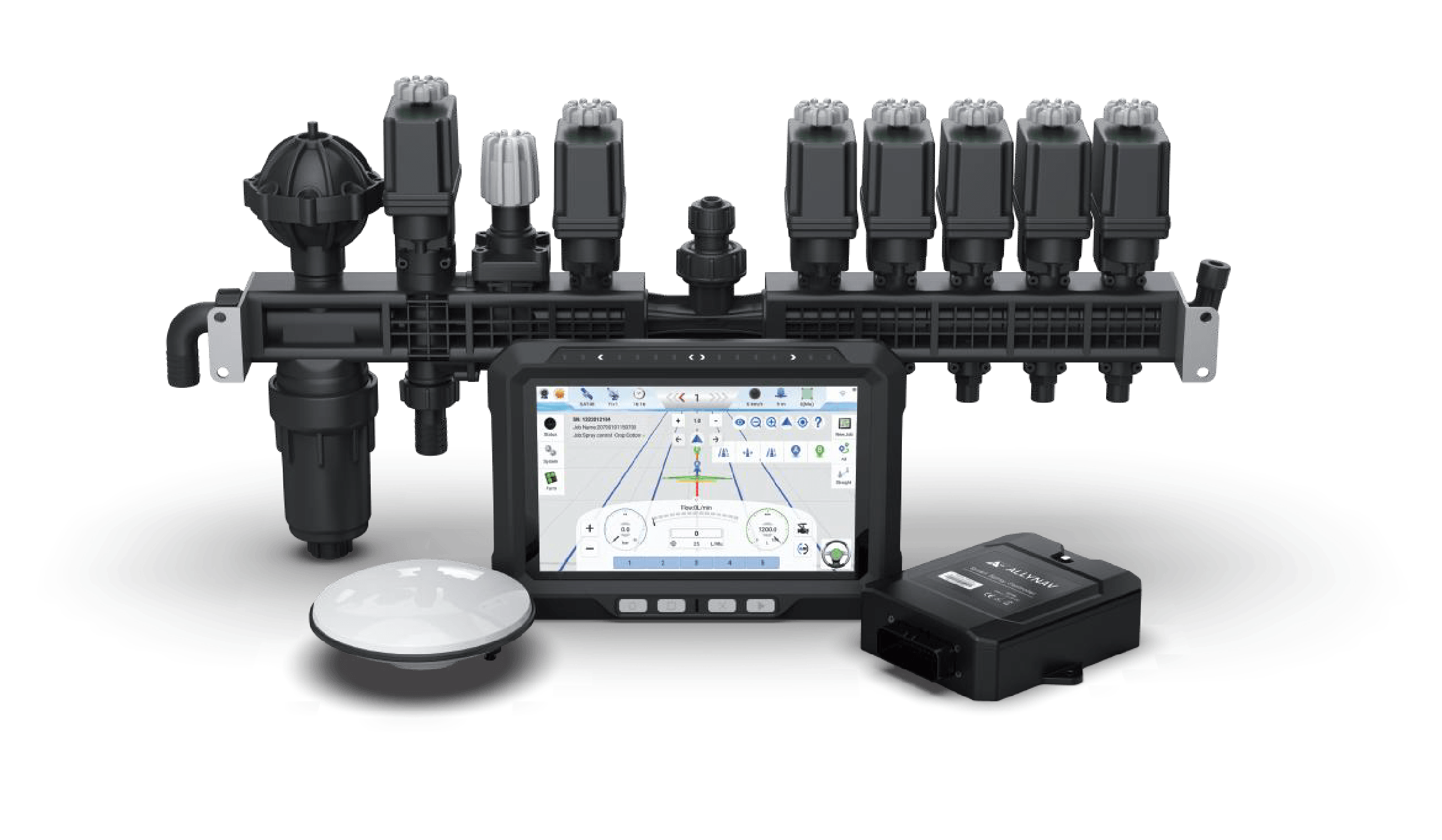

VS100 Smart Spray
Control System
The ultimate solution for precision agricultural care. This cutting-edge system seamlessly integrates electromechanical and hydraulic technology to deliver unparalleled accuracy in pesticide application. Featuring advanced satellite positioning and a range of sophisticated sensors, the VS100 ensures that your crops receive exactly the right amount of treatment, precisely where it’s needed. Elevate your plant protection strategy with the VS100 and experience a new era of automated, efficient, and environmentally friendly spraying.
Accuracy: 98%
Reapplication Control
Section Control
ISOBUS Compatibility
IP67
Visualized Operation Interface
Advanced Correction Services
Supporting 20 section valves
Product Features

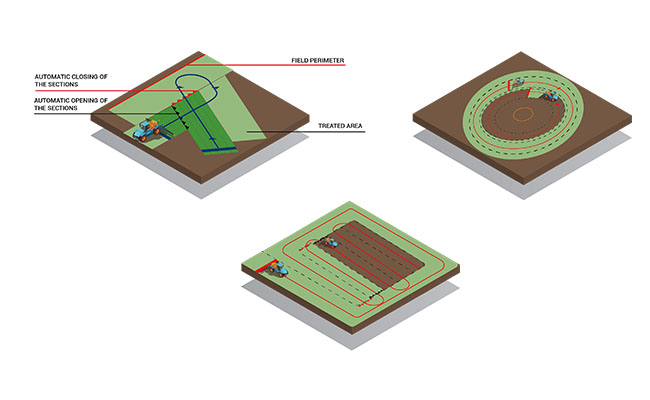

Precision Spraying with Section Control
The system achieves a spraying accuracy of up to 98% and a speed measurement accuracy of ≤0.1m/s. It features automated section control to prevent repeated spraying or missed areas. The precise flow regulation produces a uniform spray to lower costs and increase efficiency.

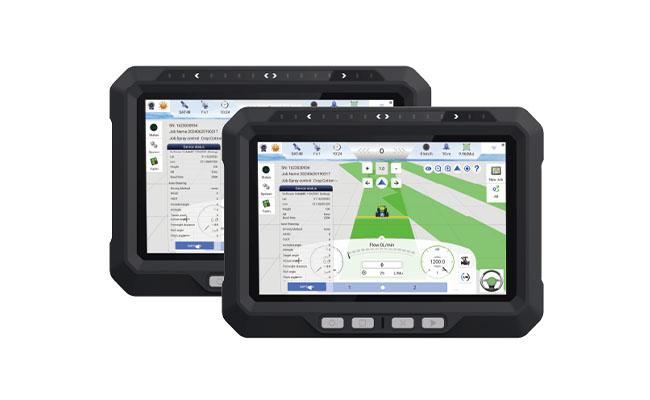

Visualized Operation Interface
The software offers a clear and straightforward interface with one-click mode switching. It provides real-time data display and visualized spraying operation tracking, with a remote management system for collection and real-time analysis of agricultural big data.
Reapplication Control
The system automatically adjusts the spraying volume during reapplication according to the vehicle speed through the positioning information, thus avoiding insufficient or excessive spray to ensure that the entire plot uniformly reaches the preset spraying rate.
High Compatibility and Easy Expansion
It can seamlessly integrate into the auto-steering system and expand quickly. It supports the simultaneous operation of up to 20 valves, realizing large-scale and complex spraying.
Core applications
Row Crops
Specialty Crops
Large-Scale Farms
Environmental Protection Projects

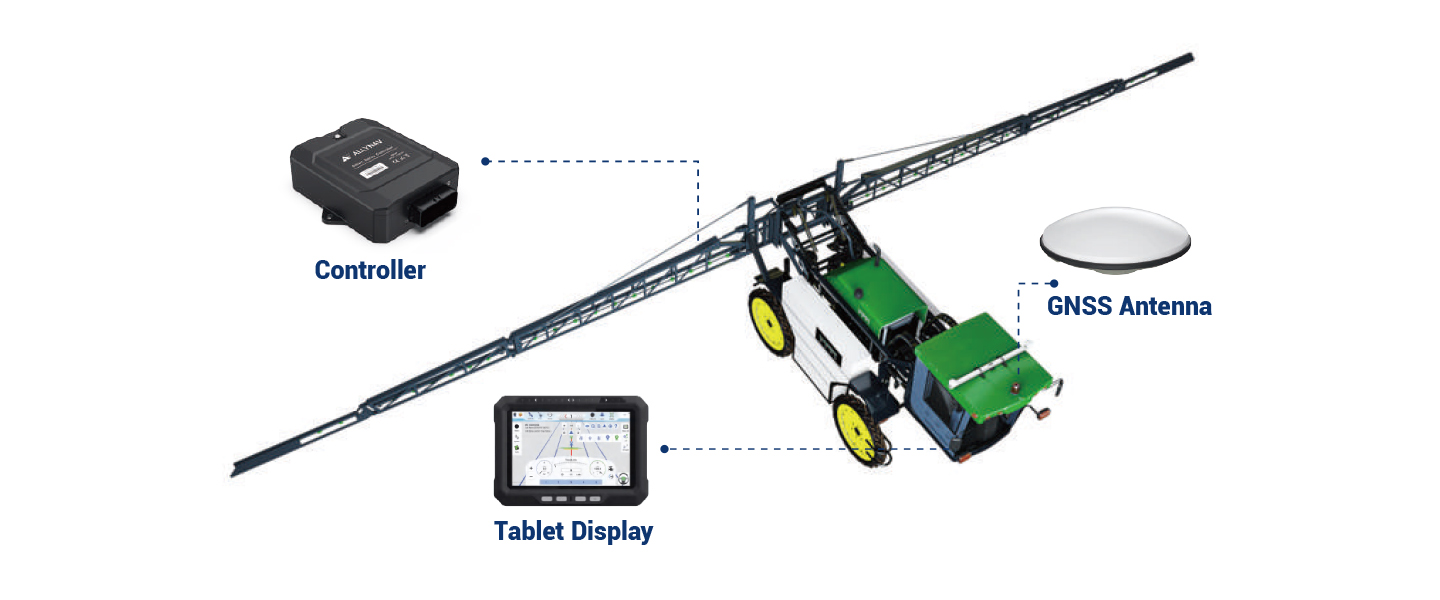

Product Parameters
Tablet DisplaySystem: 8-core, 2GHz 2G RAM 32G ROM, supports TF card (expandable up to 256G) Android 12.0 Display： 10.1 inches 1280*800p 750nits Supports 10-point touch Configuration Module： 2.4GHz WiFi, IEEE802.11a/b/g/n/ac Supports WiFi hotspot sharing I/O Interface: CAN * 2 RS-232 * 2 RS-485 * 1 DI * 2, DO * 2 | USB 2.0 * 1 12V DC output * 2 Power supply: 9 to 36 V DC Size: 284.7 * 204 * 49.5mm Weight: 1.5kg Protection level: IP67 Humidity: 95%, non-condensing Operating temperature: -20℃ to +60℃ Storage temperature: -40℃ to +70℃ RTK Positioning Accuracy (RMS)： Horizontal: 8mm + 1ppm Vertical: 15mm + 1ppm Initialization Time: <5 seconds (typical). Initialization Reliability: >99.9%. First Fix Time: <30s. GNSS AntennaFrequency Bands: BDS: B1I/B2I/B3I/B1C*/B2b* |
GPS: L1C/A/L2P(Y)/L2C/L5 Galileo: E1/E5a/E5b/E6* GLONASS: G1/G2 QZSS: L1C/A/L2C/L5 Differential Data: RTCM 2.X/3.X Data Format: NMEA-0183 Data Update Rate: 20Hz Ingress Protection: IP67 High-Precision Attitude Sensor: Built-in high-precision attitude sensor Controller SpecificationsCommunication Interface: AMP35 connector Communication Method: CAN bus Power Supply Voltage: DC 12V/24V Dimensions: 175mm × 162mm × 48mm Weight: <740g Operating Temperature: -30℃ to +70℃ Storage Temperature: -40℃ to +80℃ |
