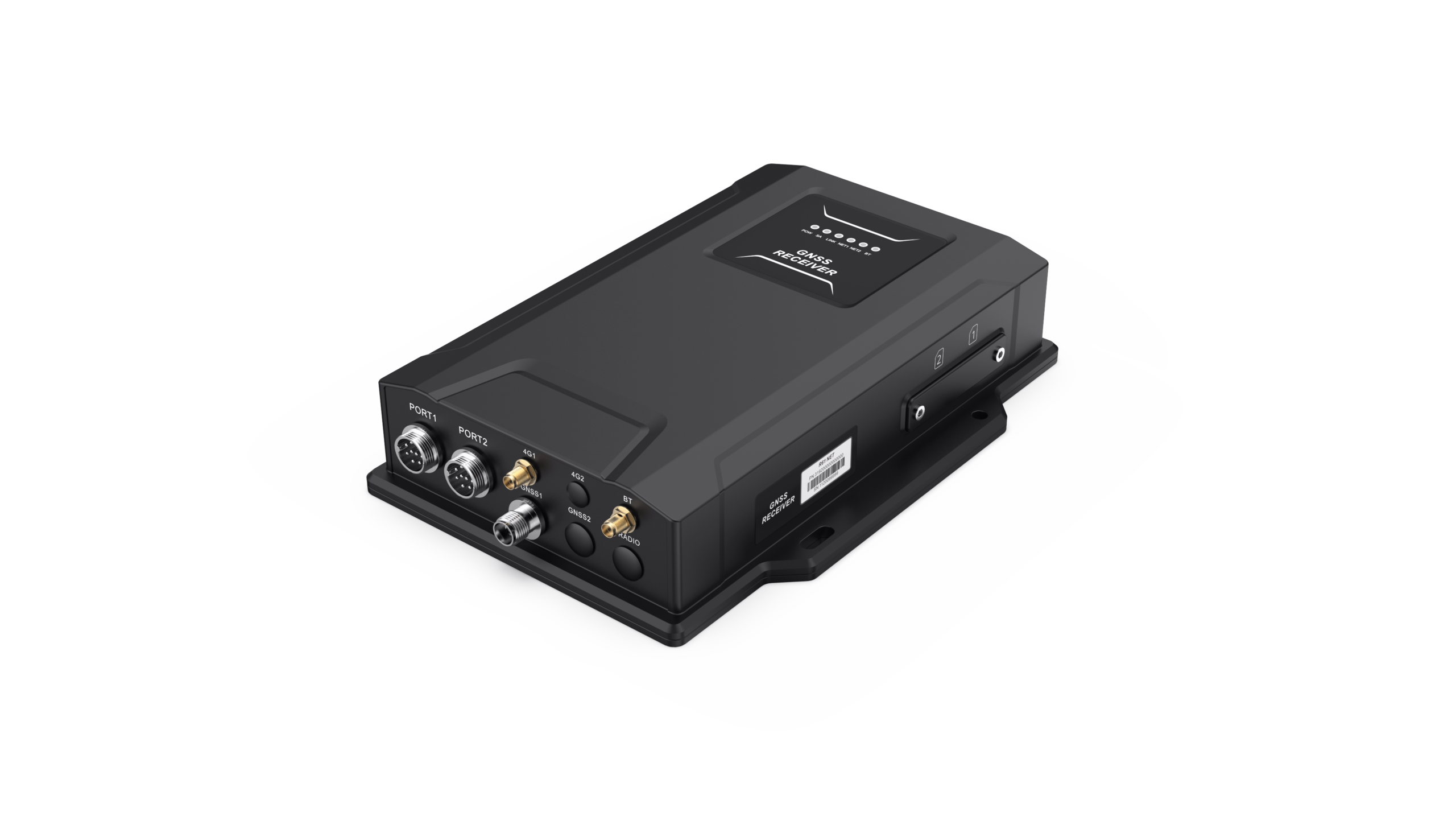

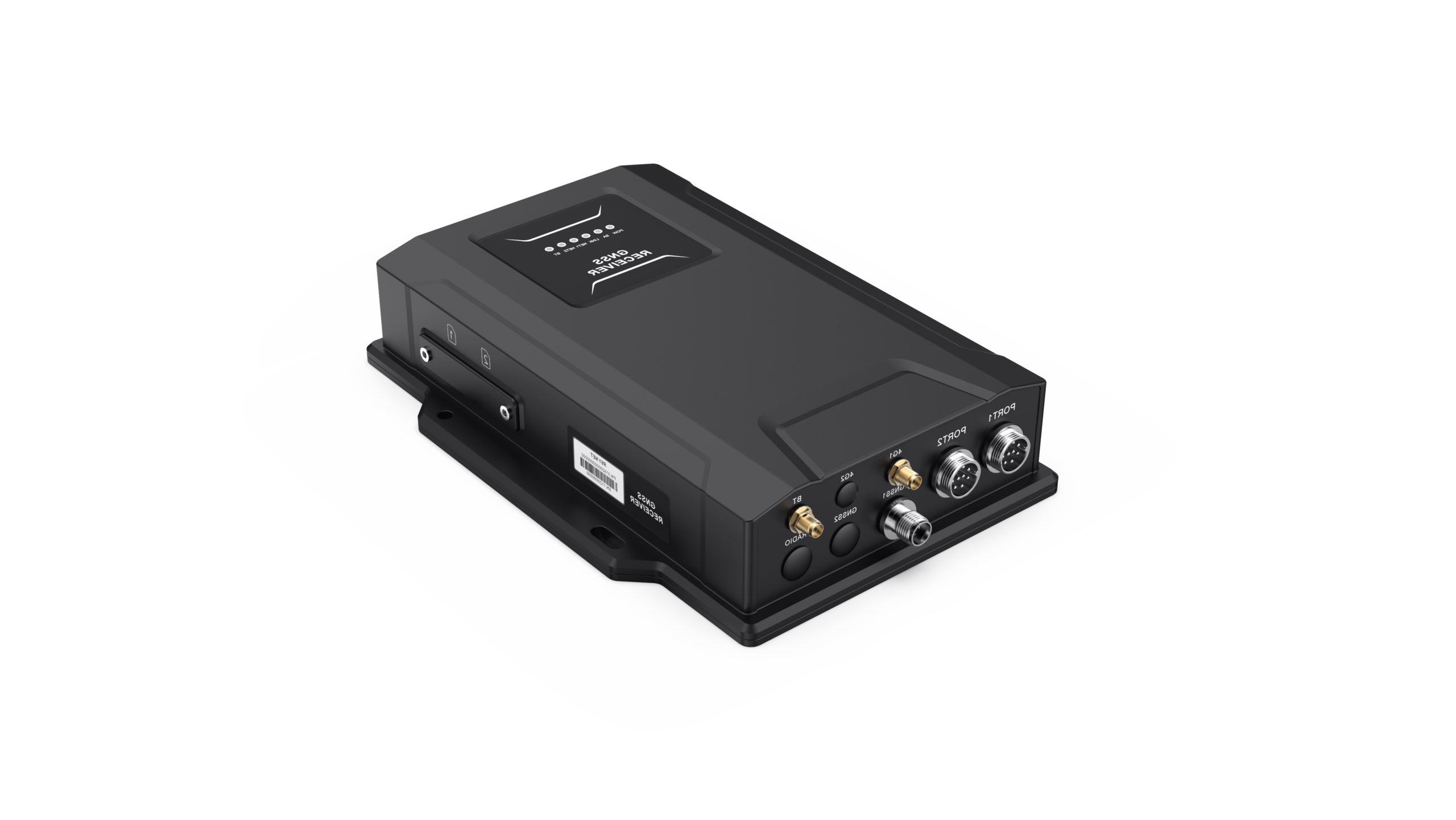

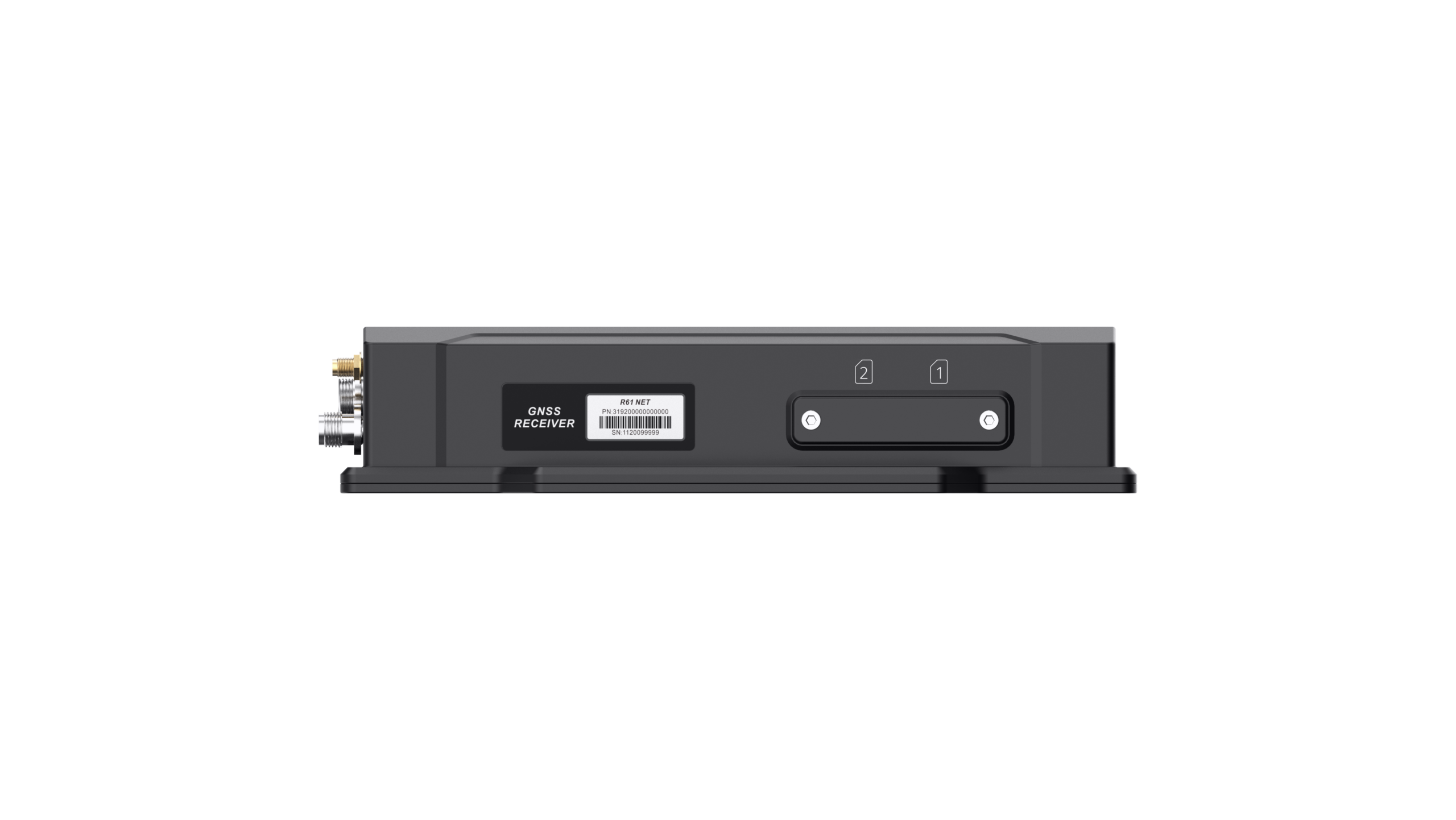

R61 GNSS Receiver
The R61 is a versatile GNSS network reference station receiver featuring multiple communication methods. It supports seamless switching between wired internet and 4G wireless networks, ensuring high reliability and stability in network communication.
Multi-frequency High Precision
APP Remote Control
IP67 protection
Triple Network Switching
Multiple Communication Methods
Dual-use as a Base Station and Rover Station
Product Features
High-Precision Positioning
Utilizes multi-system, multi-frequency high-precision board cards to ensure positioning accuracy and reliability.
Versatile Application
Suitable for various scenarios, with compatibility for both base station and rover station use.
Stable Communication
Intelligent switching between wired internet and 4G wireless network ensures a continuous, uninterrupted connection.
Convenient Operation
The integrated Bluetooth module supports the receiver's control and configuration via a mobile app.
Product Parameters
Signal Tracking: BDS: B1I/B2I/B3I/B1C/B2a/B2b GPS: L1C/A/L1C/L2C/L2P（Y）/L5 GLONASS: G1/G2/G3 Galileo: E1/E5a/E5b/E6 QZSS: L1C/A/L1C/L2C/L5 NavIC: L5 SBAS: L1C/A Cold Start Time: <12s Initialization Time: <5s (typical) RTK Initialization Reliability: >99.9% | Reacquisition Time: <1s Communication Parameters： GSM 4G module 1×RJ45 (100M Ethernet) single point positioning: Horizontal: 1.5m Vertical: 2.5m RTK Accuracy: 8mm+1ppm(RMS) 15mm+1ppm(RMS) | Static Accuracy: 2.5mm+1ppm(RMS) 5mm+1ppm(RMS) Velocity Accuracy： 0.03m/s Differential Data： RTCM 3.X Positioning Data： NMEA-0183 Static Data： Binary Network Protocol： TCP/NTRIP Power Consumption： ≤3.0W Power Supply Voltage： 9～36V DC Data Update Rate： 20Hz Baud Rate： 9600～460800 |
