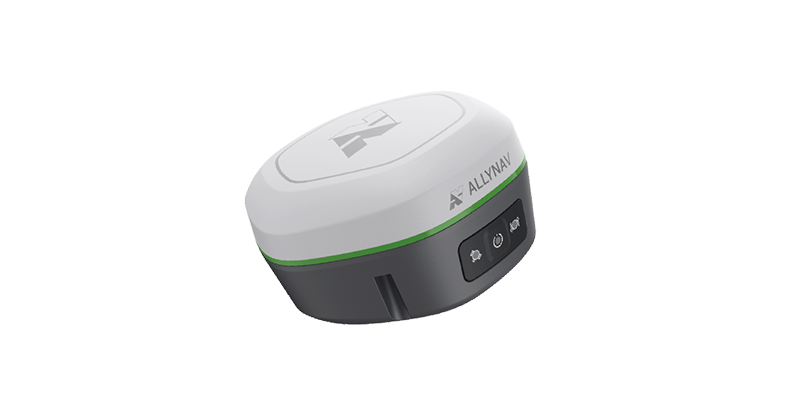

R27 GNSS Receiver
The R27 GNSS Receive is a versatile and compact GNSS receiver equipped with a full-frequency GNSS antenna, high-precision positioning board, inertial navigation module, and integrated radio module. It can function as both a rover and a base station, offering high precision, low power consumption, and a portable, easy-to-use design. The R27 is ideal for applications in machine control, surveying, precision agriculture, GIS, marine surveying, construction, mining, aerial photography, and UAV operations.
Full Constellation Support
Smart Web Platform (WEBUI)
Type-C Interface
Durable Design
Large Storage Capacity
Integrated Radio Module
Inertial Navigation Module
Product Features
High Precision
Provides centimeter-level accuracy for precise measurements in various environments.
Multi-System Compatibility
Enhanced reliability and signal stability by supporting multiple satellite systems.
User-Friendly
Easy to operate with a smart web interface and mobile connectivity.
Extended Battery Life
Long-lasting battery ensures continuous operation for extended periods.
Product Parameters
Signal Tracking: BDS: B1I/B2I/B3I/B1C/B2a/B2b GPS: L1C/A/L2P(Y)/L2C/L5 GLONASS: G1/G2/G3 Galileo: E1/E5a/E5b/E6 QZSS: L1/L2/L5 Cold Start Time: <12s Initialization Time: <5s (typical) RTK Initialization Reliability: >99.9% Reacquisition Time: <1s single point positioning: Horizontal: 1.5m | Vertical: 2.5m RTK Accuracy: 8mm+1ppm(RMS) 15mm+1ppm(RMS) Static Accuracy: 2.5mm+1ppm(RMS) 5mm+1ppm(RMS) speed accuracy:0.03m/s Differential Data: RTCM3.X Positioning Data: NMEA-0183 Static Data: Binary Power Consumption: Mobile Station: ≤2.0W Base Station: ≤2.2W | Battery Life: Mobile Station: ≥15h Base Station: ≥9h Radio Frequency: 410-470MHz Input Voltage: 9-36V DC Battery Capacity: 3350mAh Radio Power: 0.5W/1.5W Storage Capacity: 32GB Data Refresh Rate: Default 1Hz, up to 50Hz Interface Types:Type-C, SMA connectors Bluetooth: BT4.1, backward compatible with BT2.x, supports Windows/Android/iOS systems WiFi: IEEE 802.11 a/b/g/n Tilt Angle: 0-60° Tilt Accuracy: 2.5cm (within 30°) |
