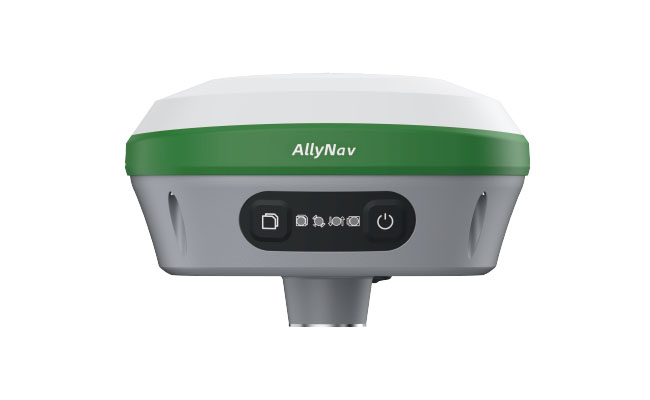

R26 Base Station

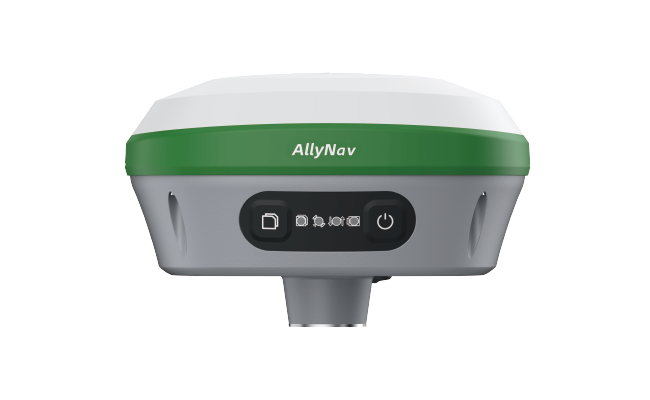

The R26 base station features excellent performance with full GNSS technology offers best-in-class GNSS signal tracking and performs GNSS surveys beyond the usual limitations. The R26L GNSS features the latest innovations, the inertial module for automatic tilt compensation in a very compact design.
Linux intelligent operating system, supporting voice control, WEBUI, and WIFI connection. The Rover is equipped with a Type-C charger and supports fast charging. The Rover supports SIM card insertion to use the network, and the base station is equipped with a standard LEMO connector.
TILT COMPENSATION
HIGH-PRECISION TRACKING ALGORITHM
BUILT-IN UHF RADIO
LONG BATTERY LIFE
Dual Mode: Base & Rover in One
Visualize operating system
Product Features

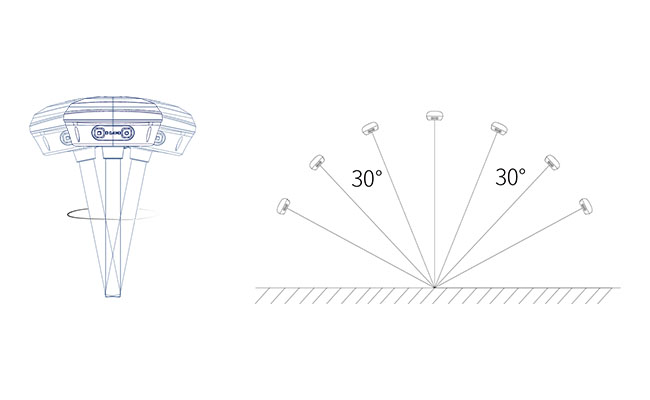

TILT COMPENSATION FOR HARD-TO-REACH MEASUREMENTS
The NebulasIV GNSS SoC integrates RF, baseband, and high-precision algorithms. It can track 40+ satellites for accurate positioning in complex environments. The built-in IMU module doesn't require calibration and achieves a 5cm tilt measurement accuracy (≤30°) with simple initialization.
ALL-IN-ONE DESIGN
The device has built-in Bluetooth, radio, WIFI, storage, positioning, inertial navigation, and antenna modules. It can switch between base station mode and rover mode for automatic switching between the mobile and base station.
NEW LINUX OPERATING SYSTEM
You can easily access and set up your device by opening a website and viewing its information. Experience hassle-free connectivity with our user-friendly interface. Advanced voice interaction capabilities and a convenient self-test function make device maintenance easy.
Product Parameters
Signal Tracking: BDS: B1I/B2I/B3I/ B1C/B2a/B2b GPS: L1C/A/L1C/L2C/L2P(Y)/L5 GLONASS: G1/G2/G3 Galileo: E1/E5a/E5b/E6 QZSS: L1C/A/L1C/L2C/L5 NavIC: L5 SBAS: L1C/A Cold Start Time: <12s Initialization Time: <5s (typical) RTK Initialization Reliability: >99.9% Reacquisition Time: <1s single point positioning: Horizontal: 1.5m | Vertical: 2.5m RTK Accuracy: 8mm+1ppm(RMS) 15mm+1ppm(RMS) Static Accuracy: 2.5mm+1ppm(RMS) 5mm+1ppm(RMS) speed accuracy:0.03m/s Differential Data: RTCM3.X Positioning Data: NMEA-0183 Static Data: Binary Power Consumption: Rover: ≤2.0W Base Station: ≤2.2W | Battery Life: Rover: ≥20h Base Station: ≥15h Radio Frequency: 410-470MHz Input Voltage: 9-36V DC Battery Capacity: 10000mAh Radio Power: 0.5W/1.5W Storage Capacity: 32GB Data Refresh Rate: Default 1Hz, up to 20Hz Interface Types:Type-C, SIM card slot, TNC connector Bluetooth: BT4.1, backward compatible with BT2.x, supports Windows/Android/iOS systems WiFi: IEEE 802.11 a/b/g/n Tilt Angle: 0-60° Tilt Accuracy: 2.5cm (within 30°) |
