Name: AS100 Soil Sampling System
Availability: InStock

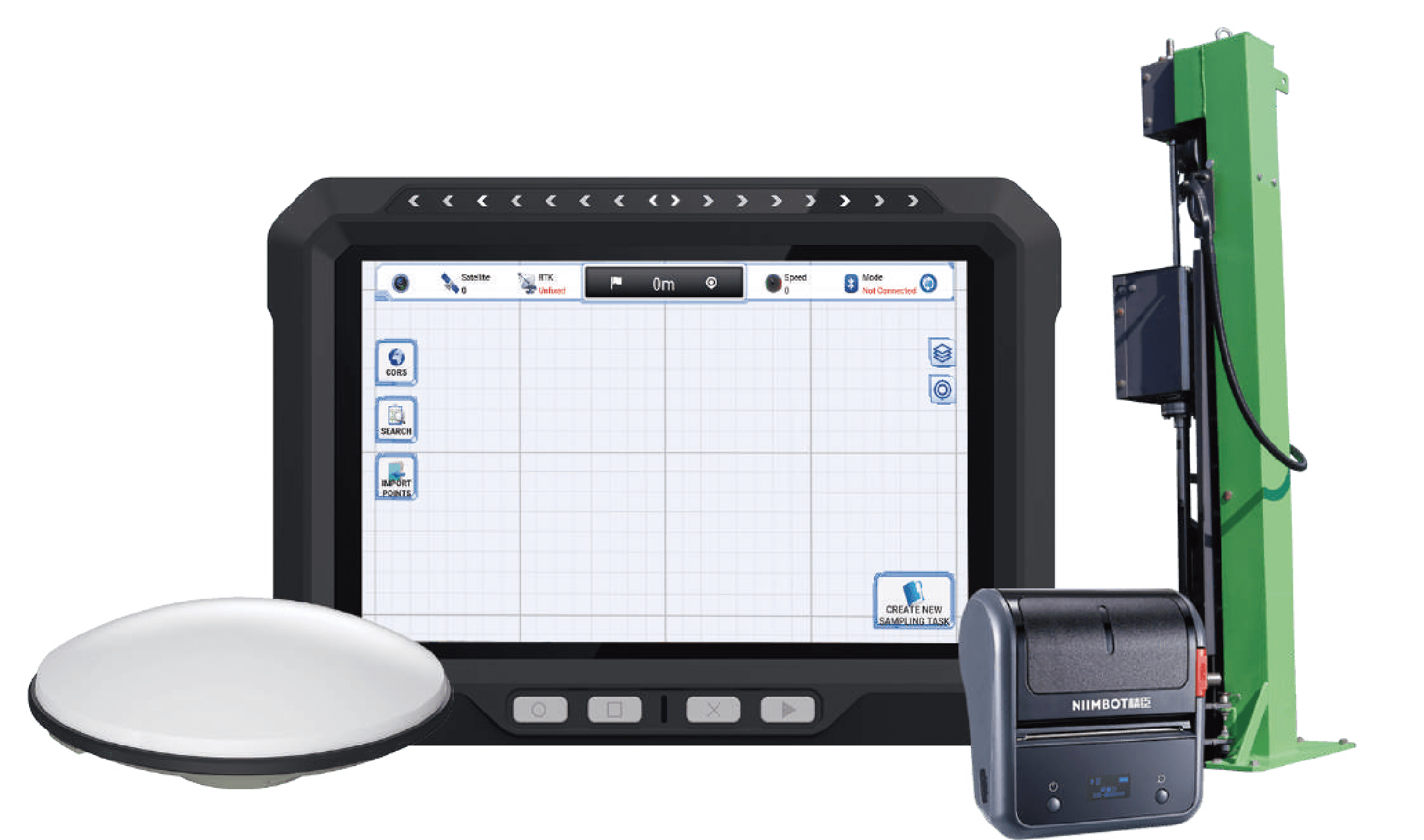

AS100 Soil Sampling System

The AS100 Soil Comprehensive Sampling System is a high-precision, high-performance, and visual-operation soil sampling system. Specifically designed for soil sampling tasks, it enables operators to quickly and accurately complete soil sampling.

Centimeter-Level Positioning Accuracy

Visual Display

Standardized Sampling

Convenient and Efficient

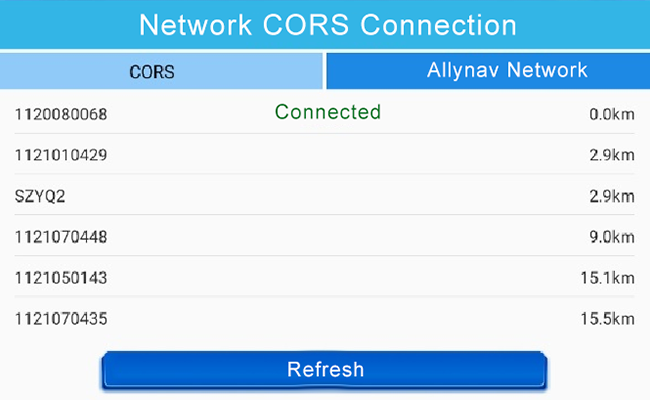

One-Click Import and Upload

IP67

Product Features

Precise Soil Information Acquisition

Centimeter-level positioning accuracy for sampling; one-click upload of location information; soil nutrient distribution visible.

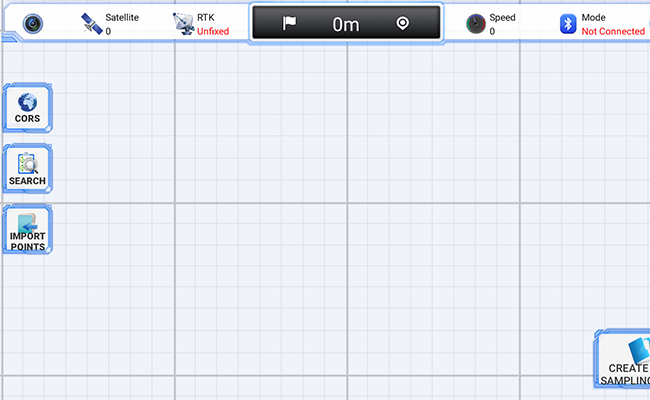

Simple Operation

Experience the ease of our user-friendly software interface and simple sampling control, which far surpasses manual methods in sampling efficiency.

Seamless Integration with Farm Management Platforms

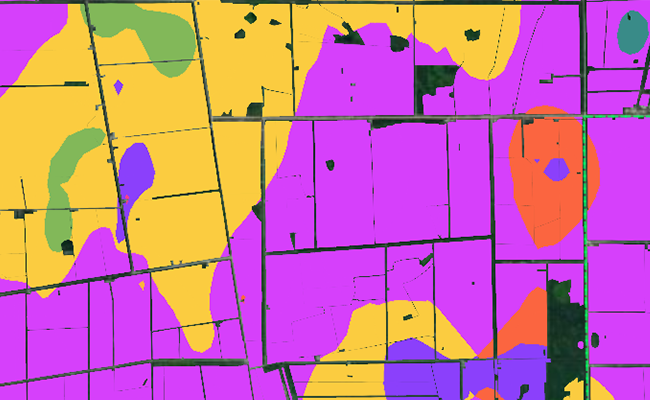

Real-time upload to the management platform with visual display, color-coded results, and one-click import of analysis outcomes, quickly generating spatial distribution maps.

Unified Standards for Sampling

Uniform sampling depth of 20cm, diameter of 21mm, compliant with sampling regulations, ensuring standardized sampling with high quality.

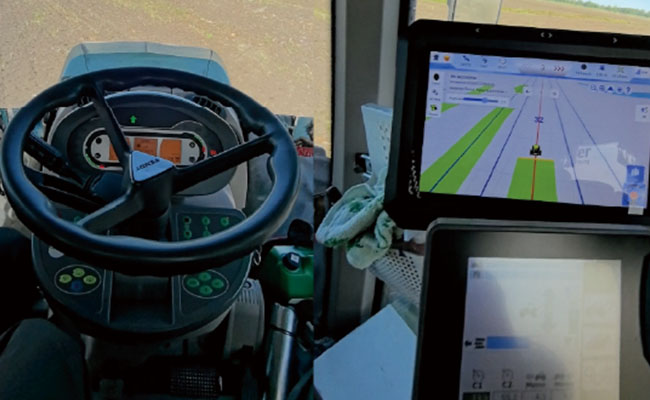

Remote and efficient control

The system supports Can layout controlloer, button, and touchscreen controls, offering a user-friendly operation experience. With intuitive elevation display, smart algorithms, and dynamic compensation technology, it ensures efficient land leveling, unaffected by terrain variations.

Core applications

Rice Fields

Dry Fields

Terraced Fields

Sloped Land

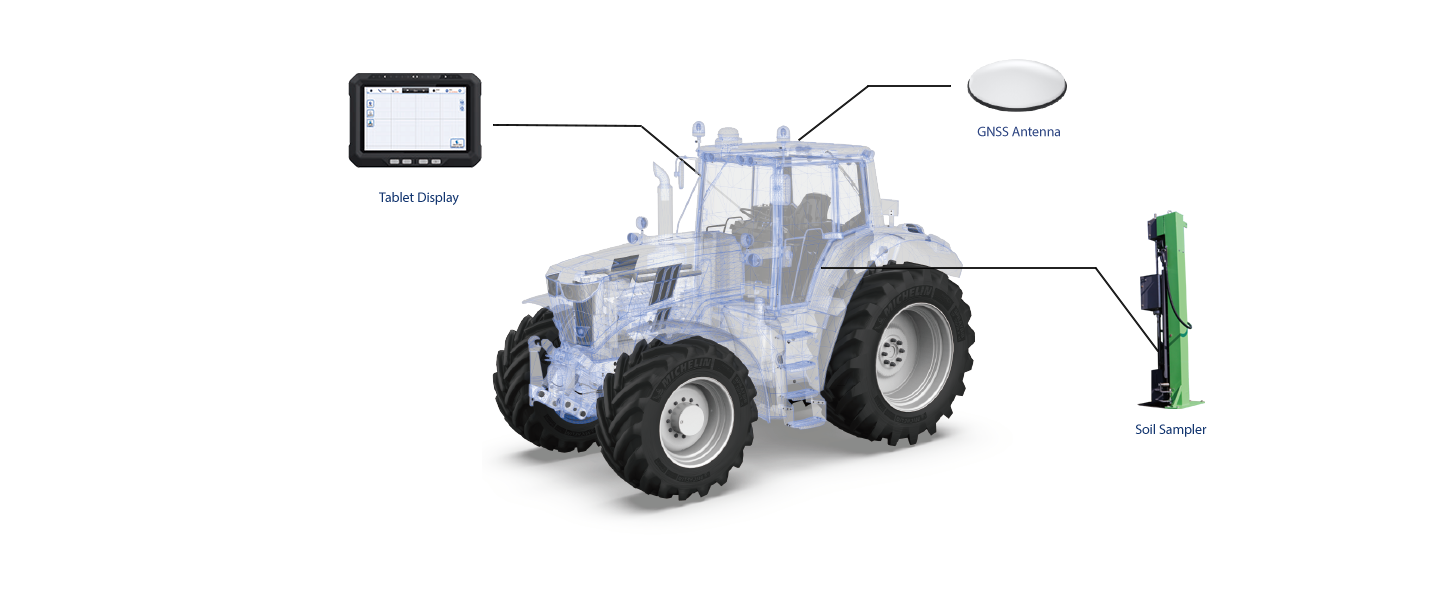

Product Parameters

Tablet Display

CPU:MT8768CA

Protection：IP67

Performance: 8-core processor, 2GHz, onboard 2GB RAM, 32GB storage

Communication Interfaces: CANBus, RS485, RS232, etc.

Screen：6-36VDC

Resolution：1280*800P

Brightness: 750 nits

GNSS Antenna

Frequency Bands:

1. GPS L1/L2/L5

2. BDS B1/B2/B3

3. GLONASS L1/L2/L3

4. GALILEO E1/E5a/E5b/E6

5. QZSS L1/L2/L5/L6

6. IRNSS L5

7. L-Band

Impedance: 50 ohms

Polarization: Right-hand circular polarization

Antenna Axial Ratio: ≤3dB

Horizontal Coverage Angle: 360°

Output Standing Wave Ratio (SWR): ≤2.0

Maximum Gain：4.5dBi

Phase Center Accuracy：±2mm

Low Noise Amplifier：

L1 Band: 34±2dB

L2 Band: 36±2dB

Noise Figure: ≤2dB

In-Band Flatness：±2dB

Operating Voltage：+3.3~+12VDC

Operating Current：≤45mA

Differential Transmission Delay：≤5ns

Antenna Dimensions：Φ152*62.2mm

Weight：≤400g

Connector Type：TNC female

Mounting Method：Center rod mount, thread specification: 5/8″-11 UNC, height 12-14mm

Operating Temperature：-40℃~+85℃

Storage Temperature：-55℃~+85℃

Humidity：95% non-condensing

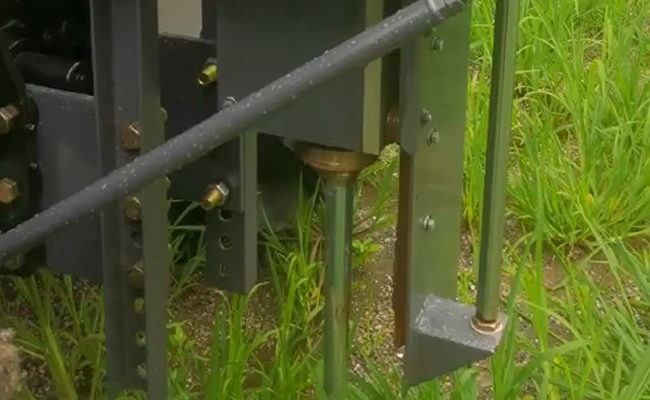

Soil Sampler

Soil Sampling Depth: 0-40cm

Inner Diameter of Sampling Tube: 21mm

Dimensions: 45*45*158cm

Mounting Method: Customized base needed according to tractor model for fixing the sampler, compatible with most tractors
