Name: AF305 Steer Ready
Availability: InStock

AF305 Steer Ready

A simplified and nimble Steering Solution For Precision Agriculture

Pass to Pass Accuracy: +2 5 cm

Path Planning

Plug-and-play

ISOBUS Compatibility

GIS Information Transfer

PPP SBAS RTK-PPP RTK VRS

Original Configuration

Terrain Compensation

Product Features

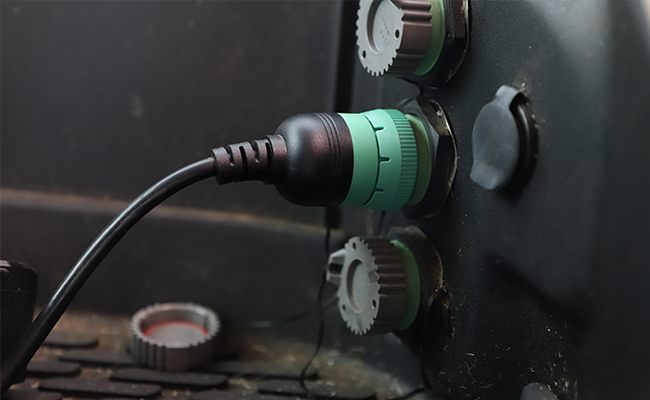

Easy assembly

One-touch plugging of the connection port eliminates the need for a motorized steering wheel and additional hydraulic valves.

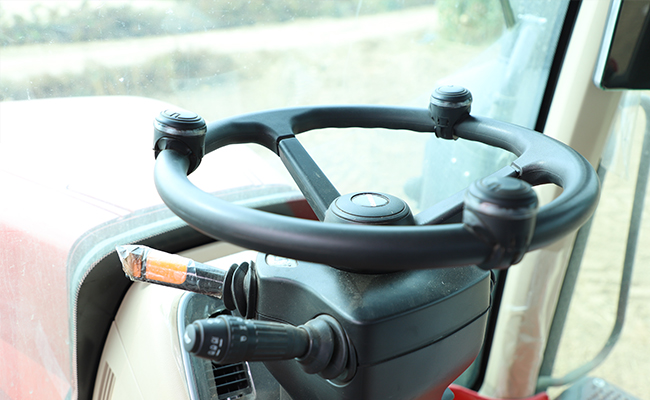

Minimalist driving experience

The cockpit environment does not need to be changed. It retains the original vehicle performance and settings and provides the most minimalist driving experience.

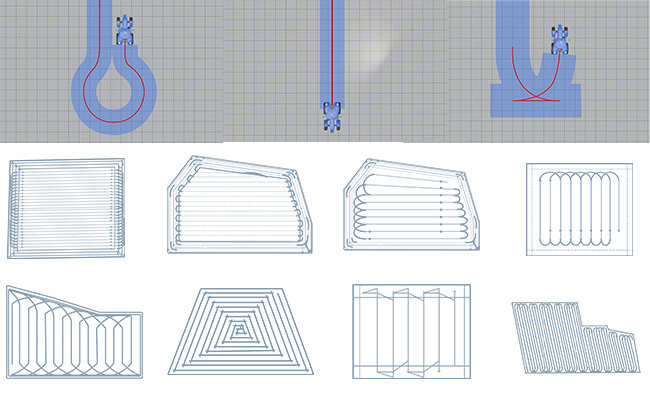

Multiple paths

Autonomous planning paths, support for AB line, Curve, Pivot, Headland, Adaptive Curve mode, U-turn, Spiral Line, 90° and other navigation paths.

Advanced Intelligent Control System

Equipped with high-precision terrain compensation algorithms to address complex terrain operations, it supports quick one-key correction of farm equipment offsets and facilitates GIS information transmission.

Extensive Compatibility

Support ISOBUS, only a small number of hardware modules with different agricultural tools need to be added. This can achieve the whole process of plowing, planting, management, and harvesting intelligence in one multi-purpose machine.

Multi-source signal correction

Support VRS/PPP-B2b/PPP-E6/PPP-RTK and other calibration services to achieve an accuracy error of ≤2.5cm (1 in) to ensure operational accuracy.

Core applications

Precision Planting

Efficient Spraying

Harvesting

Tillage and Soil Preparation

Product Parameters

Tablet Display

System:

8-core, 2GHz

2G RAM

32G ROM

Android 12.0

Display：

10.1 inches

1280*800p

750nits

Supports 10-point touch

Configuration Module:

Wi-Fi:i11a/b/g/n/ac (2.4GHz), supports Wi-Fi hotspot

Bluetooth: 4.2BLE

Cellular Connectivity: 4G/LTE

Audio:Built-in microphone (optional), Built-in speaker

CAN port: CAN × 2

Serial port: RS-232 × 2, RS-485 × 1

Digital I/O: DI × 2, DO × 2

USB port: USB 2.0 × 1

Analog I/O: AI ×4

9 to 36 VDC

Power consumption: ≤ 0 W

Button: custom function button ×4

Connector: Deutsch 12-pinconnector × 2, Deutsch 6-pin connector × 1

Dimensions: 284.7 ×204 × 5 mm

Weight: 1.7 kg

Ingress protection rating: IP67

Humidity: 95%, non-condensing

Operating temperature: -20°C to +60°C

Storage temperature: -40°C to +70°C

GNSS Receiver

Channel: 1408 channels, based on Nebulas IV

RTK Positioning Accuracy (RMS)

Horizontal: 8 mm + 1ppm

Vertical: 15 mm + 1ppm

Initialization Time: <5S (typical)

Initialization Reliability: >99.9%

First Fix Time: <30S

Frequency Bands

BDS: B1I/B2I/B3I/B1C*/B2b*

GPS: L1C/A/L2P(Y)/L2C/L5

Galileo: E1/E5a/E5b/E6*

GLONASS: G1/G2

QZSS: L1C/A/L2C/L5

SBAS: L1C/A

L-band

Correction data: RTCM 3.X

Orientation accuracy: 0.5°

Roll or pitch accuracy (RMS): 0.4°

Gyroscope：3-axis

Accelerometer: 3-axis

Data format: NMEA-0183

Data update rate: supports 100Hz IMU raw data output and 50Hz RTK positioning result output.

Baud rate: 9600 – 460800

Network: supports 4G full-netcom/global roaming compatibility

Radio: built-in data transmission radio communication module, supports TRIMTALK, TRIMMARK3, TRANSEOT, and CSS protocols.

Dimensions: 181.4 × 181.1 × 70 mm

Weight: <2kg

Impact and vibration: resistance to 2m drops

Ingress protection: IP67

Controller

High-side switch: 8 channels
