Name: AF305 Automated Steering System
Availability: InStock

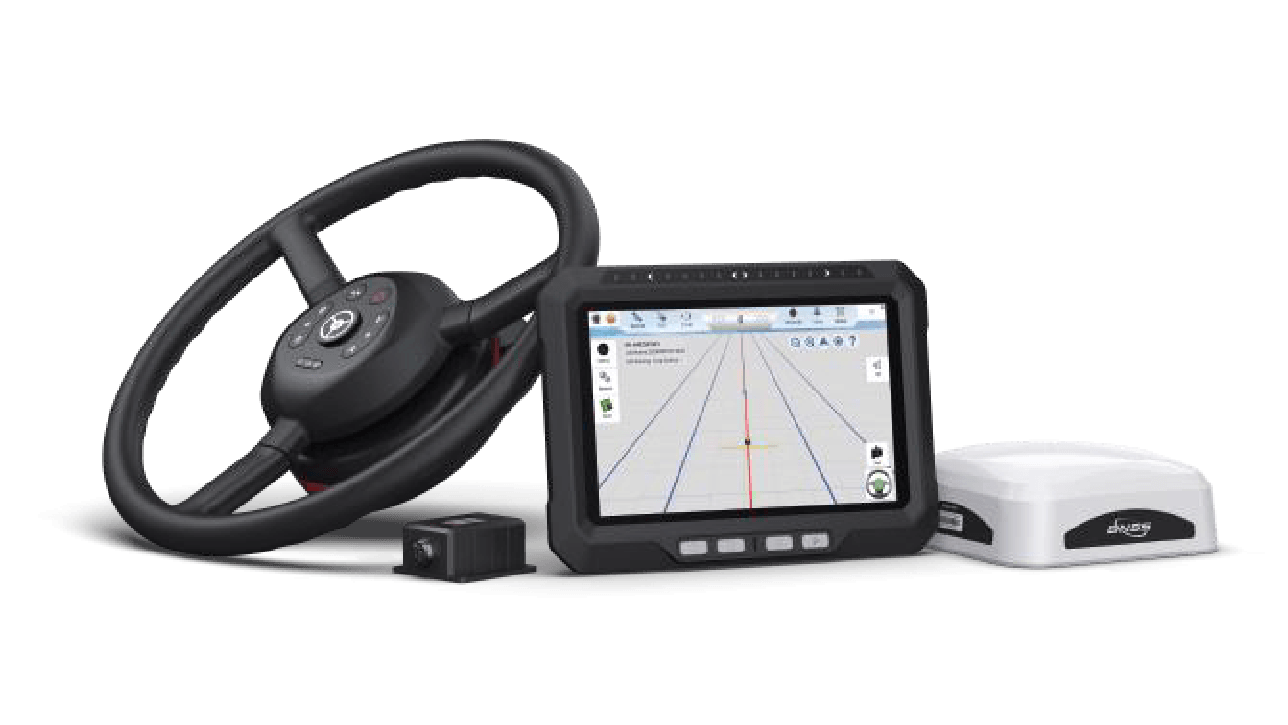

AF305 Automated
Steering System

ABOUT

The AF305 Automatic Steering System adopts a large torque motor control scheme, combined with a self-developed control algorithm, to provide high-precision intelligent operation management for agricultural machinery, replace the traditional manual operation mode, reduce labor intensity and improve the degree of automation of agricultural machinery.

Play Video

Min Speed 0.1 km/h

Path Planning

Precision Accuracy of ±2.5cm

ISOBUS Compatibility

GIS Information Transfer

PPP-RTK

VRS

Terrain Compensation

Product Features

Easy to use

The integrated motor-driven steering wheel design ensures quick and easy installation and removal. The user-friendly interface gets you up and running within 20 minutes.

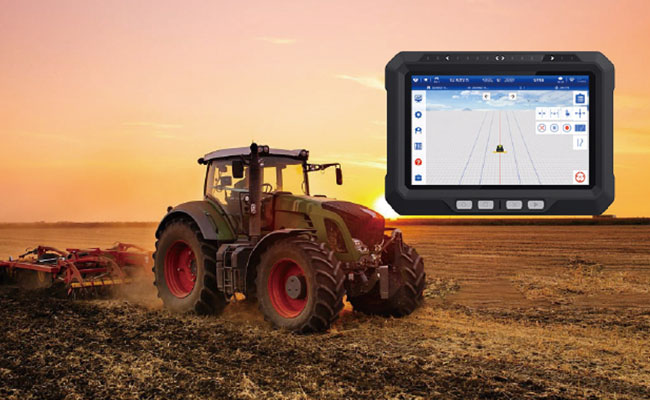

Automated and smart control

The app allows real-time path planning, including turns, straight lines, and curves. It enables quick farming tool alignment and real-time remote monitoring for precise autosteering that saves time and increases efficiency.

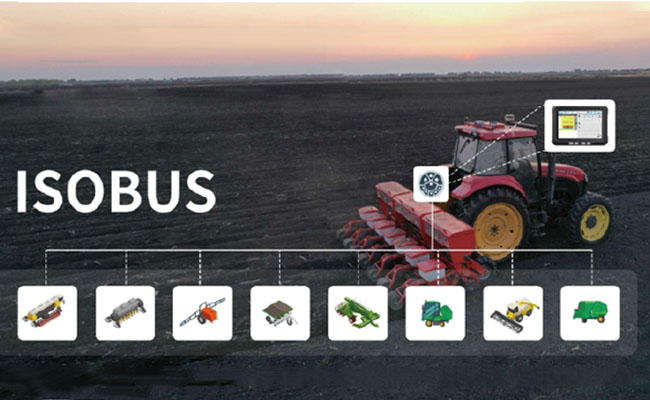

Extensive (ISOBUS) Compatibility

When different farming tools with appropriate hardware modules are installed under the ISOBUS, the farming processes from tilling to harvesting are improved. Built-in high-precision terrain compensation brings optimal performance on complex terrains with just one machine.

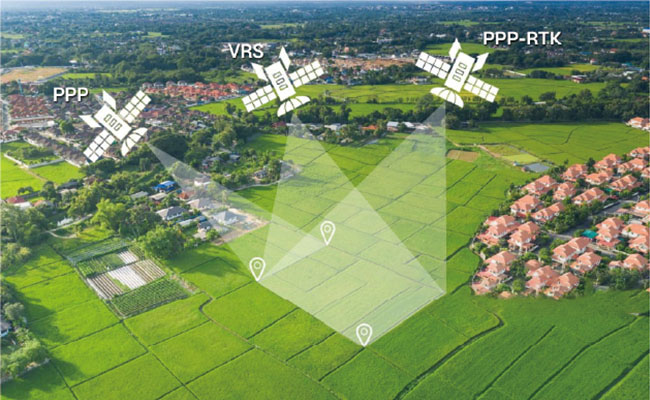

Advanced Correction Services

A robust antenna guarantees excellent signal stability in unreliable signal conditions. Enjoy accurate operation with up to ±2.5 cm precision using multiple correction services like PPP, VRS, RADIO, and PPP-RTK without needing a base station.

Worry-Free Autosteering

You can operate confidently and efficiently by relying on our market-proven technology backed by 24/7 remote support from a globally deployed service network.

Core applications

Precision Planting

Efficient Spraying

Harvesting

Tillage and Soil Preparation

Product Parameters

Tablet Display

System:

8-core, 2GHz

2G RAM

32G ROM, supports TF card (expandable up to 256G)

Android 12.0

Display：

10.1 inches

1280*800p

750nits

Supports 10-point touch

Configuration Module:

2.4GHz WiFi, IEEE802.11a/b/g/n/ac

Supports WiFi hotspot sharing

I/O Interface:

CAN * 2

RS-232 * 2

RS-485 * 1

DI * 2, DO * 2

USB 2.0 * 1

12V DC output * 2

Size: 284.7 * 204 * 49.5mm

Weight: 1.5kg

Protection level: IP67

Humidity: 95%, non-condensing

Operating temperature: -20℃ to +60℃

Storage temperature: -40℃ to +70℃

GNSS Receiver

RTK Positioning Accuracy (RMS)

Horizontal: 8 mm + 1ppm

Vertical: 15 mm + 1ppm

Initialization Time: <5S (typical)

Initialization Reliability: >99.9%

First Fix Time: <30S

Frequency Bands

BDS: B1I/B2I/B3I/B1C*/B2b*

GPS: L1C/A/L2P(Y)/L2C/L5

Galileo: E1/E5a/E5b/E6*

GLONASS: G1/G2

QZSS: L1C/A/L2C/L5

SBAS: L1C/A

Differential Data: RTCM V2.X/3.X

Data Format: NMEA-0183

Data Update Rate: 20Hz

Ingress protection: IP67

Steering and Control Section

Motor voltage supply range: 9 to 36V DC

Rated current: 10A

Stall current: 25A

Rated voltage: 12V

Communication protocol: ModBUS

Dimensions: Diameter: 181.5mm Height: 60.4mm

Weight: 2.8kg

Operating temperature: -20 to +70℃

Storage temperature: -40 to +85℃

Exterior material: Aluminum alloy

Rated speed: 100rpm

Peak torque: 9 N.m

Continuous operation speed: 100rpm

Data Interface:

CANBUS

RS232

AD conversion
