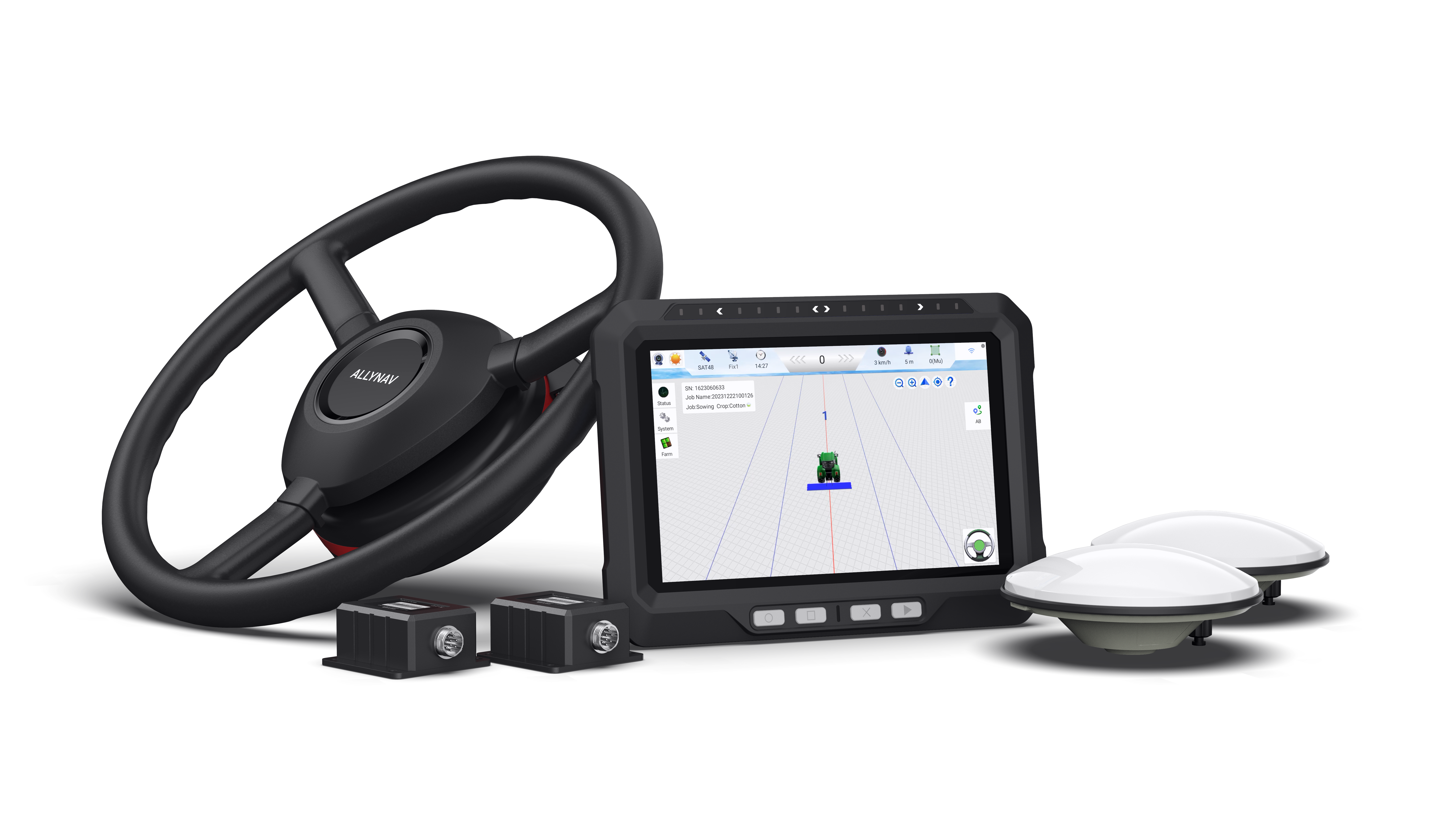

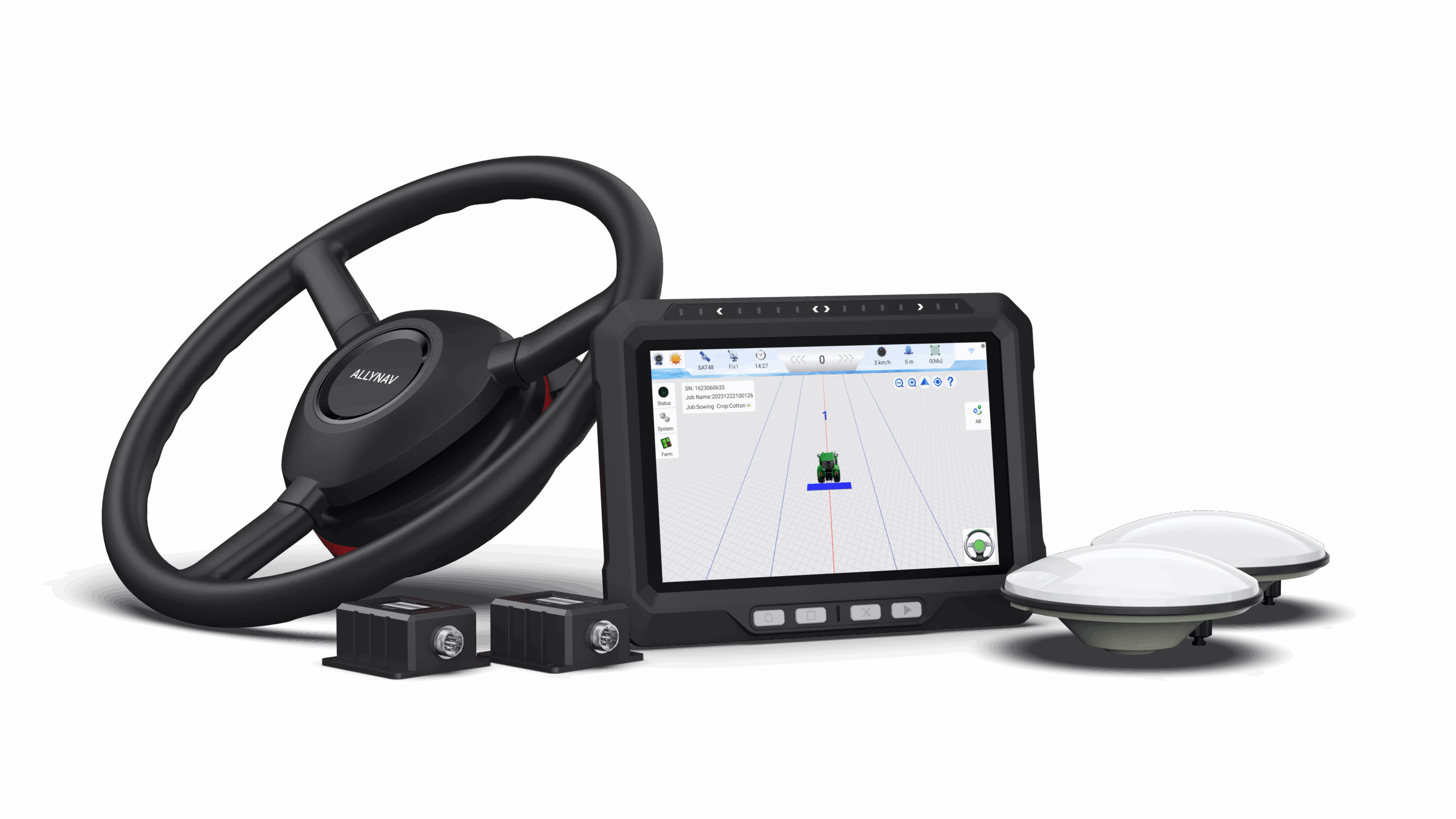

AF302 Automated
Steering System

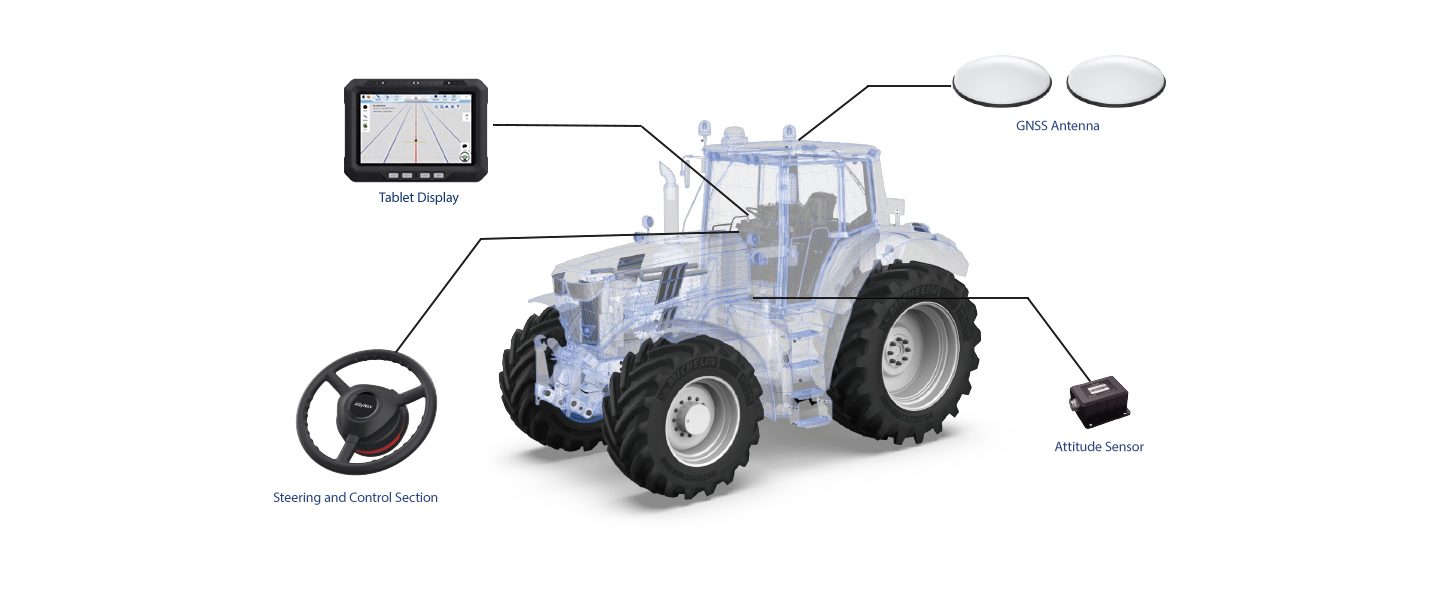

The AF302 Automatic Steering System adopts a large torque motor control scheme, combined with a self-developed control algorithm, to provide high-precision intelligent operation management for agricultural machinery, replace the traditional manual operation mode, reduce labor intensity and improve the degree of automation of agricultural machinery.
Path Planning
Precision Accuracy of ±2.5cm
Precision Accuracy of ±2.5cm
GIS Information Transfer
PPP-RTK
PPP-RTK
ISOBUS Compatibility
Terrain Compensation
Product Features

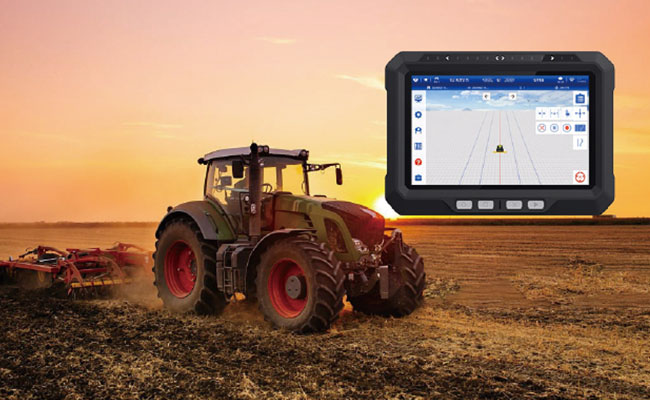

Automated and smart control
The app allows real-time path planning, including turns, straight lines, and curves. It arms quick farming tool alignment and real-time remote monitoring for precise autosteering that saves time and increases efficiency.

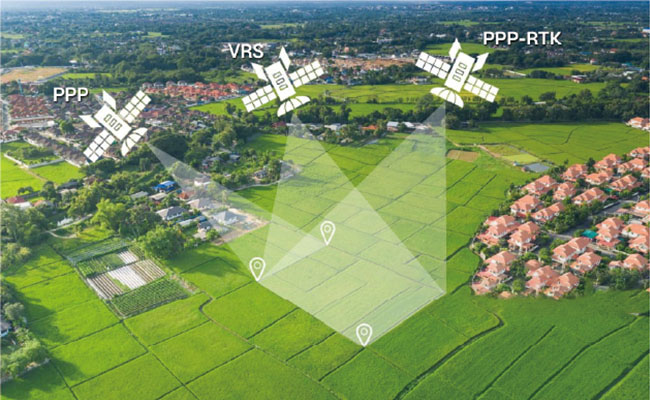

Advanced Correction Services
A robust antenna guarantees excellent signal stability in unreliable signal conditions. Enjoy accurate operation with up to ±2.5 cm precision using multiple correction services like PPP, VRS, RADIO, and PPP-RTK without needing a base station.

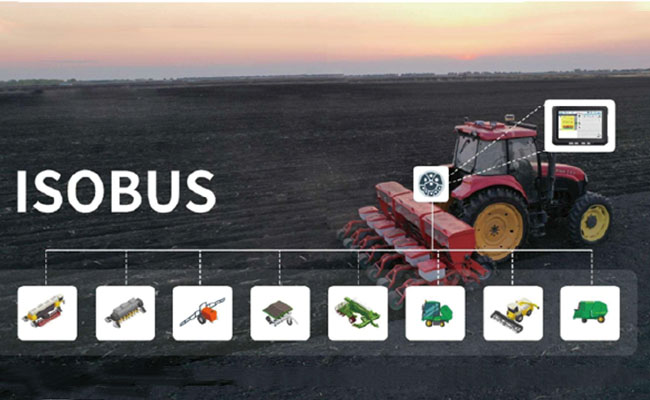

Extensive (ISOBUS) Compatibility
When different farming tools with appropriate hardware modules are installed under the ISOBUS, the farming processes from tilling to harvesting are improved. Built-in high-precision terrain compensation brings optimal performance on complex terrains with just one machine.
Easy to use
The integrated motor-driven steering wheel design ensures quick and easy installation and removal. The user-friendly interface gets you up and running within 20 minutes.
Worry-Free Autosteering
You can operate confidently and efficiently by relying on our market-proven technology backed by 24/7 remote support from a globally deployed service network.
Core applications
Precision Planting
EFFICIENT SPRAYING
Harvesting
Tillage and Soil Preparation
Product Parameters
Tablet DisplayCPU:MT8768CA Protection：IP67 Performance: 8-core processor, 2GHz, onboard 2GB RAM, 32GB storage Communication Interfaces: CANBus, RS485, RS232, etc. Screen：6-36VDC Resolution：1280*800P Brightness: 750 nits GNSS AntennaFrequency Bands: 1. GPS L1/L2/L5 2. BDS B1/B2/B3 3. GLONASS L1/L2/L3 4. GALILEO E1/E5a/E5b/E6 5. QZSS L1/L2/L5/L6
|
6. IRNSS L5 7. L-Band Impedance: 50 ohms Polarization: Right-hand circular polarization Antenna Axial Ratio: ≤3dB Horizontal Coverage Angle: 360° Output Standing Wave Ratio (SWR): ≤2.0 Maximum Gain：4.5dBi Phase Center Accuracy：±2mm Low Noise Amplifier： L1 Band: 34±2dB L2 Band: 36±2dB Noise Figure: ≤2dB In-Band Flatness：±2dB Operating Voltage：+3.3~+12VDC
|
Operating Current：≤45mA Differential Transmission Delay：≤5ns Antenna Dimensions：Φ152*62.2mm Weight：≤400g Connector Type：TNC female Mounting Method：Center rod mount, thread specification: 5/8″-11 UNC, height 12-14mm Operating Temperature：-40℃~+85℃ Storage Temperature：-55℃~+85℃ Humidity：95% non-condensing Soil SamplerSoil Sampling Depth: 0-40cm Inner Diameter of Sampling Tube: 21mm Dimensions: 45*45*158cm Mounting Method: Customized base needed according to tractor model for fixing the sampler, compatible with most tractors |
