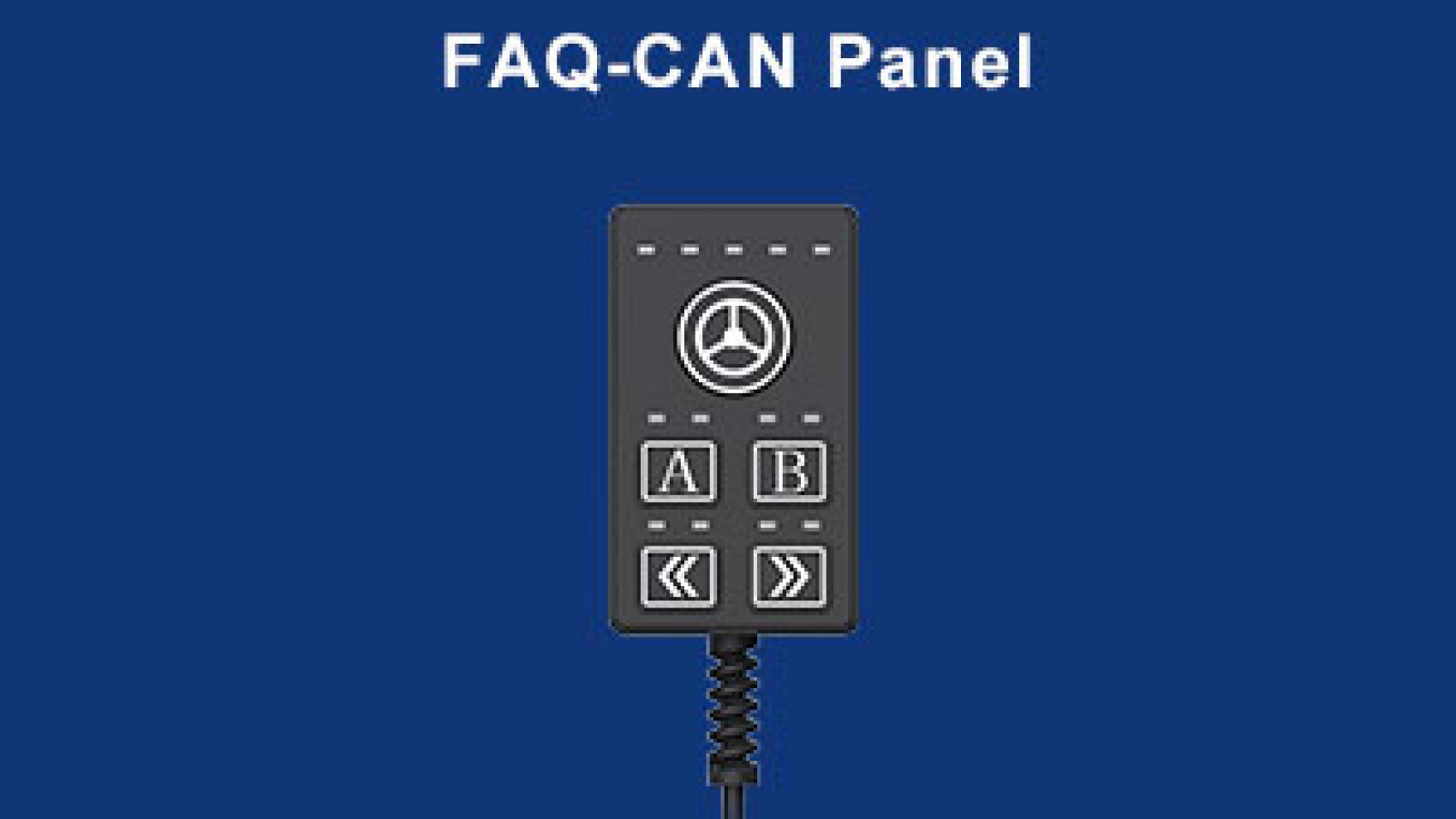

CAN panel usually refers to “Controller Area Network” panel, which is a device used for data exchange in industrial automation and vehicle systems. It supports the CAN bus protocol, allowing different devices and controllers to communicate on the network, ensuring the reliability and real-time performance of data transmission. CAN panel is used to simplify network layout and improve system stability and efficiency, and is widely used in the automotive, mechanical and industrial control fields.
The company currently has two types of CAN panel hardware
Ordinary CAN panel (connected and communicated via the main CAN port)
question
The CAN panel cannot be used normally and the buttons are invalid:
The baud rate is different from the device baud rate and cannot be used:
The CAN panel of French SAS users cannot be used normally and needs to be connected to the AF305 dual-gyro device. The baud rate of the device is 500K, but the baud rate of the CAN panel is 250K. The baud rate of the CAN panel needs to be modified by a computer through a CAN analyzer.
Android 6 and Android 9 tablets cannot be used without connecting the resistor.
A resistor needs to be added to the other end of the cable connected to the CAN panel for normal use.
Bluetooth CAN panel (communication via Bluetooth connection via the tablet’s USB port)
question
The software version is too old and incompatible. You need to use a version later than 1.4.9.
effect:
①Start/stop automatic driving.
②Create AB line.
③Move line AB left and right.
④Turn left or right with one button.
⑤The Bluetooth CAN panel has an additional function of resetting the AB line.
